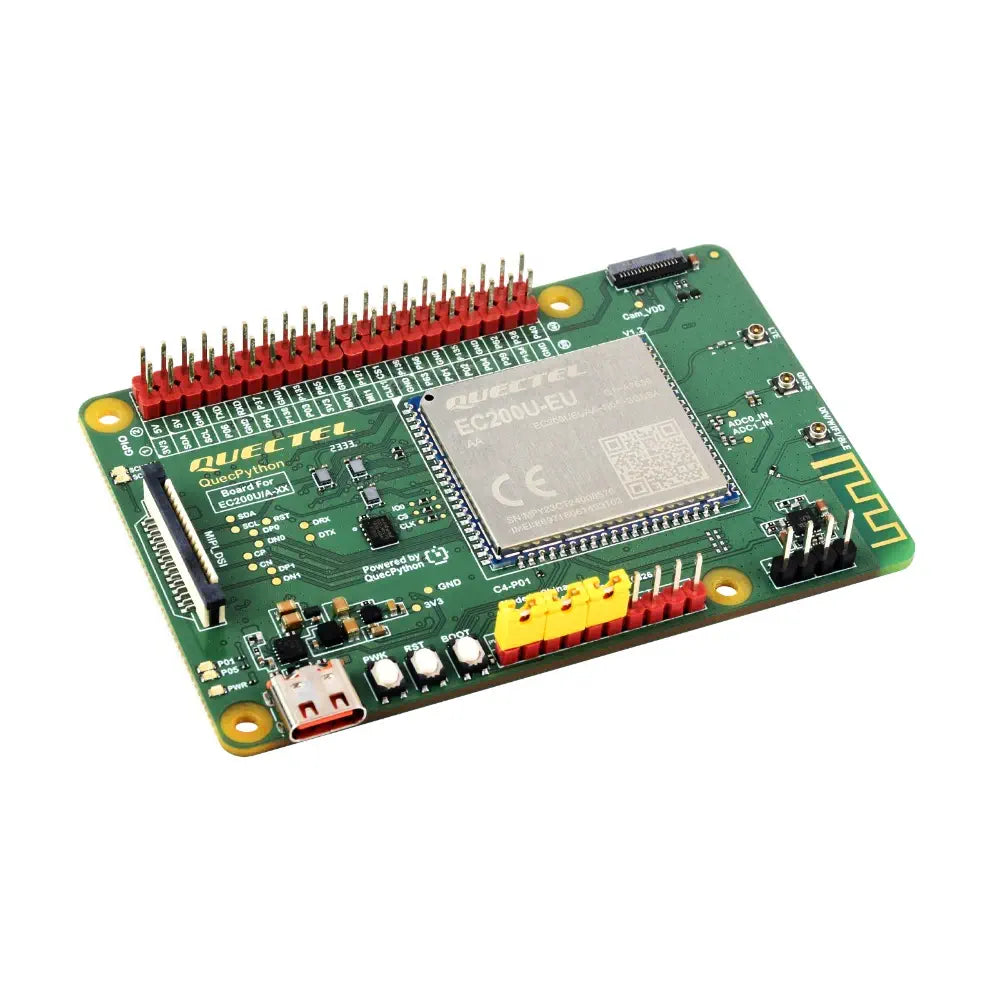

Waveshare EC200U-EU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth, GNSS
Description Waveshare EC200U-EU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth, GNSS Integrates EC200U-EU LTE Cat 1 module Supports GNSS positioning and dual SIM Features 40PIN GPIO, Raspberry Pi HATs compatible Offers Type-C USB for easy development Includes MIPI and SPI camera connectors The Waveshare EC200U-EU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth, GNSS is a compact and versatile development board designed to facilitate advanced wireless communication and positioning capabilities. It integrates the EC200U-EU LTE Cat 1 module, offering a maximum data rate of up to 10 Mbps for downlink and 5 Mbps for uplink, supporting multi-mode and multi-band operations. This board is compatible with the Quectel multi-mode LTE standard EC20-CE, ensuring broad compatibility and cost-effectiveness. The development board features a Type-C USB port for straightforward connectivity and development, alongside a 40PIN GPIO pin header that is compatible with most Raspberry Pi HATs. It supports a wide range of protocols, including TCP, UDP, PPP, and more, and offers GNSS positioning capabilities with support for GPS, GLONASS, BDS, Galileo, and QZSS. The board includes a Nano SIM card slot and an eSIM card slot, allowing for dual card single standby functionality. Additional features include an onboard MIPI connector for screen connectivity and a camera connector supporting customized SPI cameras with up to 300,000 pixels. The board is equipped with five LEDs to indicate module operating status and provides various development tools such as QPYcom, Thonny IDE plugin, and VSCode plugin to facilitate learning and development. It is designed to operate within a temperature range of -30 to 75°C, with a storage temperature range of -45 to 90°C. View more What's Included 1x Waveshare EC200U-EU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth, GNSS Dimensions Links Website EC200U-EU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth, GNSS - Product Wiki Specifications Equipped with EC200U-EU LTE Cat 1 wireless communication module Supports multi-mode and multi-band Features an onboard 40-pin GPIO header, compatible with most Raspberry Pi HATs Includes 5 LEDs to indicate module operating status Supports TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS protocols Supports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS) Features onboard Nano SIM card slot and eSIM card slot, dual card single standby Includes onboard MIPI connector for connecting MIPI screen Onboard camera connector supports customized SPI cameras with a maximum of 300,000 pixels Provides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin for easy learning and development Operating temperature range: -30 to 75°C Storage temperature range: -45 to 90°C Type-C USB port for easy development Compatible with Raspberry Pi HATs Supports various development tools
