Waveshare Raspberry Pi Camera Scheduler, 1 Cable for 2 Cameras

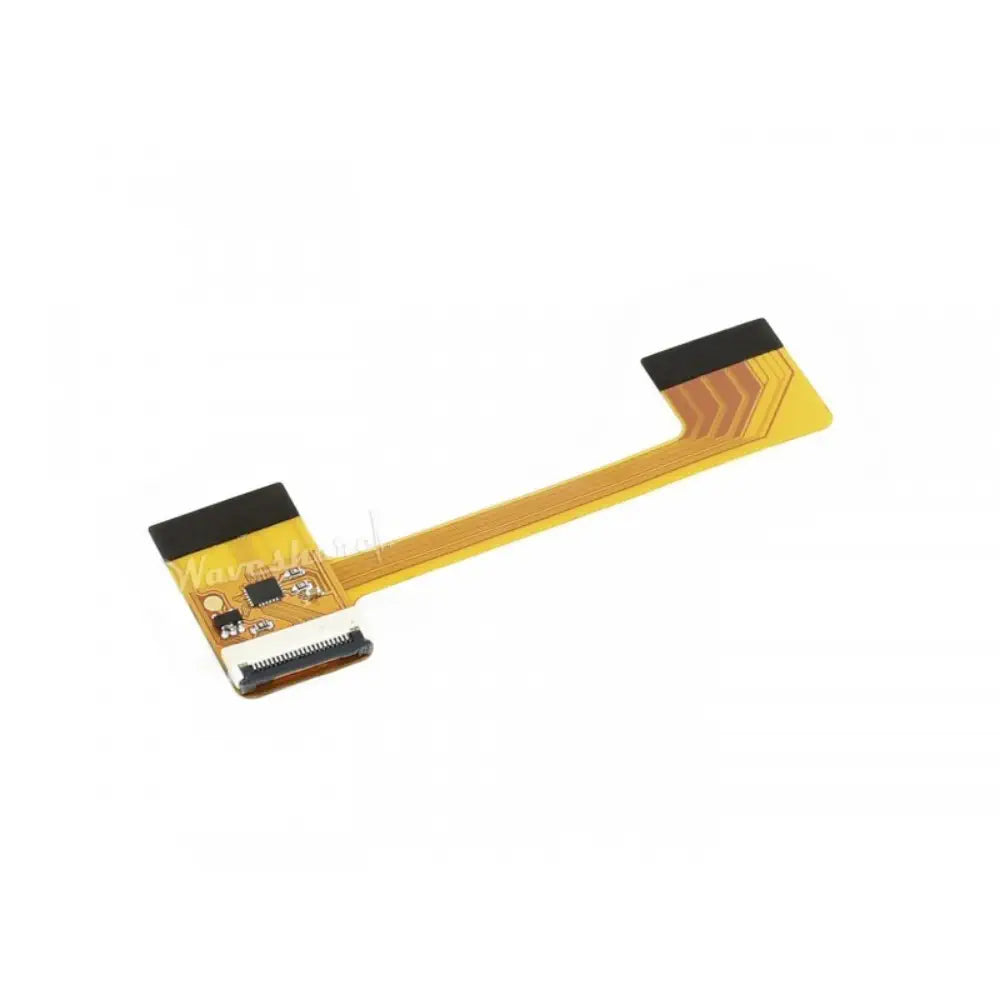

Description Waveshare Raspberry Pi Camera Scheduler, 1 Cable for 2 Cameras Enables dual camera connection to Raspberry Pi Features time-share scheduling via GPIO Compatible with all Raspberry Pi boards Supports two 8MP or two 5MP cameras Measures 76mm x 26mm The Waveshare Raspberry Pi Camera Scheduler, 1 Cable for 2 Cameras is a specialized flexible printed circuit that enables the connection of two cameras to a Raspberry Pi. It features a time-share scheduling function, allowing users to manually or automatically select the active camera via GPIO. This device is compatible with the full series of Raspberry Pi boards and supports configurations with either two 8MP IMX219 cameras or two 5MP OV5647 cameras. It does not support mixed configurations of these camera models. View more What's Included 1x Waveshare Raspberry Pi Camera Scheduler, 1 Cable for 2 Cameras 1x Camera Scheduler 1x RPi Zero v1.3 camera cable 15cm 2x Jumper wire 1pin 2.54 pitch 1x FFC 22pin 160mm (opposite side contact) Dimensions 76 x 26 mm Links Website Raspberry Pi Camera Scheduler, One Cable for Two Cameras - Camera Scheduler Specifications Time-share scheduling function allows the Raspberry Pi to connect two cameras simultaneously Select the active camera manually or automatically via GPIO Compatible with the full series of Raspberry Pi boards Works with two 8MP IMX219 cameras or two 5MP OV5647 cameras Not compatible with a combination of one 8MP IMX219 camera and one 5MP OV5647 camera
