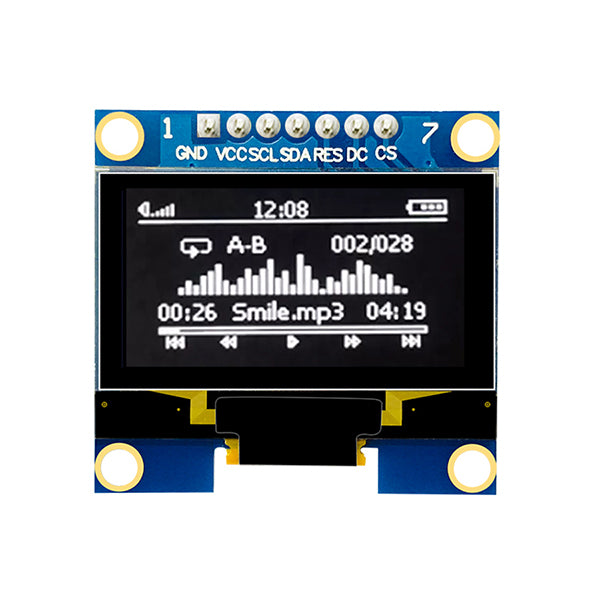

1.3" OLED Display Module 128x64 7P-II2,SPI
$5.85
{{option.name}}:
{{selected_options[option.position]}}
{{value_obj.value}}
Specifications Display Size:1.30" Resolution Ratio : 128x64 Display Mode: Passive Matrix Viewing Angles: IPS Controller IC :SSD1306/SH1106 Interface : I2C/SPI Pin No: 7P Pixel Size:0.21×0.21 mm Pixel Pitch: 0.23×0.23 mm Power Supply :3.3-5 V Display Color : Monochrome (White /Blue) Module Dimension :35x33.5x2.9(H) mm Viewing Area : 31.42(W) x 16.7(H) mm Operation Temperature : -30℃~70℃ Storage Temperature : -40℃~85℃ Pin Definition Please check image. Dimensions Pin Definition
