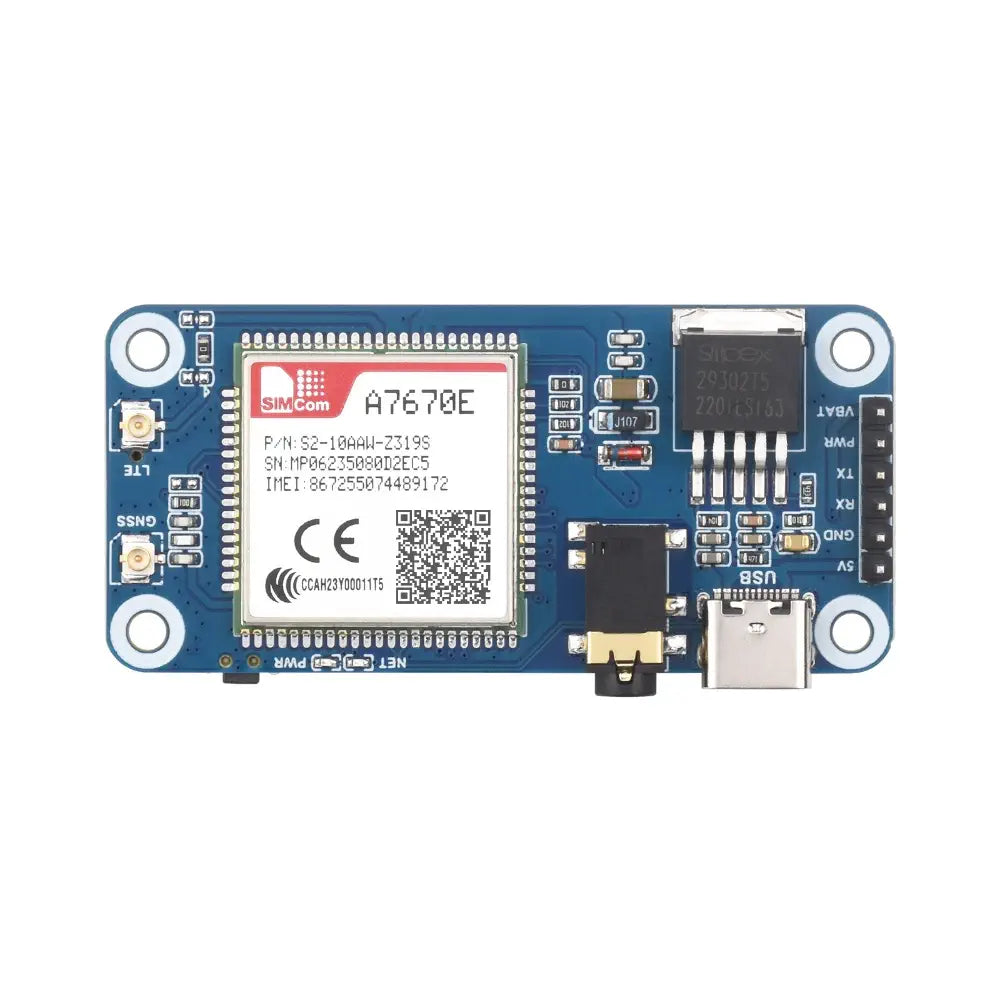

Waveshare Cat-1/GSM/GPRS/GNSS HAT for Raspberry Pi, Based on A7670E Module, LTE Cat-1/2G Support, GNSS

Description Waveshare Cat-1/GSM/GPRS/GNSS HAT for Raspberry Pi, Based on A7670E Module, LTE Cat-1/2G Support, GNSS Enhances Raspberry Pi with LTE Cat-1/2G support Supports SMS, calls, and positioning Compatible with Windows/Linux OS Includes TTS and multi-GNSS support Offers extensive IoT application use The Waveshare Cat-1/GSM/GPRS/GNSS HAT for Raspberry Pi, Based on A7670E Module, LTE Cat-1/2G Support, GNSS is a versatile module designed to enhance Raspberry Pi boards with advanced communication capabilities. It supports LTE Cat-1 and 2G networks, enabling functionalities such as telephone calls, SMS, and both LBS and GNSS positioning. The module is compatible with various wireless communication modes, including LTE-TDD, LTE-FDD, GSM, GPRS, and EDGE, offering a downlink rate of up to 10Mbps and an uplink rate of up to 5Mbps. It is suitable for IoT applications, such as remote information processing, monitoring devices, and satellite positioning. This HAT supports multiple operating systems, including Windows and Linux, and is compatible with the SIM7000/SIM7070 series in size, with AT commands mostly compatible with the SIM7600 series. It features a standard Raspberry Pi 40PIN GPIO extension header, supporting protocols like TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL. The module includes an onboard USB interface for testing AT commands and network communication, as well as an audio jack for sound recording and telephone calls. It also supports GPS, BeiDou, and GLONASS positioning, and includes a TTS feature for converting text to speech. The module is equipped with a SIM card slot supporting 1.8V/3V SIM cards and two LED indicators for monitoring operating status. It comes with development resources and a manual, providing examples for Raspberry Pi, Jetson Nano, Arduino, and STM32 applications. View more What's Included 1x Waveshare Cat-1/GSM/GPRS/GNSS HAT for Raspberry Pi, Based on A7670E Module, LTE Cat-1/2G Support, GNSS 1x USB-A to USB-C cable 1x FPC antenna 1x GPS antenna 1x Screws pack Dimensions 65 x 30.5 mm Links Website Cat-1/GSM/GPRS/GNSS HAT for Raspberry Pi, Based On A7670E module, LTE Cat-1 / 2G support, GNSS - Product Wiki Specifications LTE Cat-1 module Supports LTE-TDD, LTE-FDD, GSM, GPRS, EDGE Up to 10 Mbps downlink rate and 5 Mbps uplink rate Supports Windows/Linux operating systems Compatible with SIM7000/SIM7070 series AT commands mostly compatible with SIM7600 series Suitable for IoT applications Standard Raspberry Pi 40-pin GPIO extension header Supports TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL protocols Supports dial-up, telephone calls, SMS Supports LBS base station positioning Supports GPS, BeiDou, GLONASS positioning TTS (Text To Speech) feature Onboard USB interface Onboard audio jack Breakout commonly used control pins SIM card slot supports 1.8V/3V SIM card Two LED indicators Includes development resources and manual Frequency Band: LTE Cat-1 LTE-FDD: B1, B3, B5, B7, B8, B20 2G GSM/GPRS/EDGE: 900/1800 MHz SMS supported types: MT, MO, CB, Text, PDU Audio feature: Standard 3.5mm audio jack Power supply: 5V (via USB port or 5V pin header), 3.7 ~ 4.2V (via VBAT pin header) Operating voltage: 3.3V Multi-band support of LTE Cat-1/2G Dial-up on Windows/Linux Cloud communication Telephone call and SMS support Application examples: Smart garden solutions, server performance cloud monitoring, IoT GPS mobile positioning
