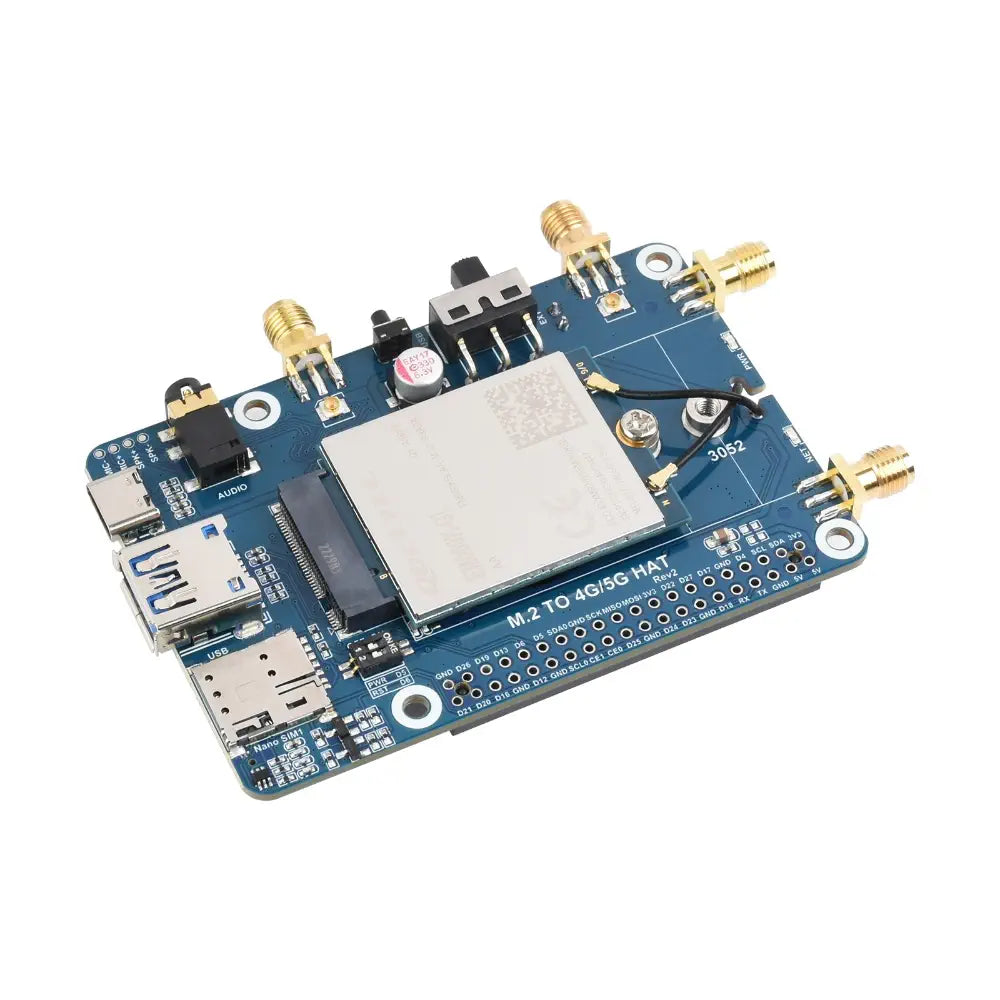

Waveshare Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-Band, GNSS Positioning, W/ EM060K-GL Module

Description Waveshare Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-Band, GNSS Positioning, W/ EM060K-GL Module Integrates LTE Cat 6 for fast global connectivity Supports GPS, GLONASS, BDS, and Galileo positioning Facilitates cloud communication and SMS services Compatible with PCs, Raspberry Pi, and Jetson Nano Includes USB-C for a stable and flexible power supply The Waveshare Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-Band, GNSS Positioning, W/ EM060K-GL Module integrates advanced LTE-A Cat 6 communication capabilities with GNSS positioning, offering a downlink rate of up to 300Mbps and an uplink rate of 50Mbps. This module is compatible with a wide range of devices, including PCs, Raspberry Pi, and Jetson Nano, facilitating high-speed LTE-A network connectivity and supporting cloud platform communication, SMS sending, and global GNSS positioning. This communication HAT features multi-constellation high-precision GNSS positioning, supporting GPS, GLONASS, BDS, and Galileo systems. It is equipped with a USB 3.1 port, which is also compatible with USB 2.0, allowing seamless connection to various hosts. The module includes a standard M.2 B KEY slot, compatible with QUECTEL and SIMCOM series 4G/5G modules, and offers onboard power and reset control pins, which can be managed via a DIP switch. The device is designed for IoT and M2M applications, supporting multiple network standards such as LTE-A and UMTS/HSPA(+), and is compatible with various operating systems, including Windows, Linux, and Android. It nearly covers all mainstream carriers worldwide, ensuring broad compatibility and ease of use. The module also includes a USB-C connector for a stable and flexible power supply, a power supply switch, a reset button, and an LED indicator for monitoring the operating status. Note: Ensure proper handling and installation to avoid damage to the module and connected devices. View more What's Included 1x Waveshare Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-Band, GNSS Positioning, W/ EM060K-GL Module 1x M.2 to 4G/5G HAT 1x EM060K-GL 1x 2x Antenna 1x 2x IPEX adapter cable 1x 2*20pin pin header 1x GNSS antenna 1x Dual plug USB3.0 cable 1x USB3.0 adapter 1x USB2.0 adapter 1x 2x SMA protective cap 1x Screws pack Dimensions 42.0 x 30.0 x 2.3 mm Links Websites Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-band, GNSS Positioning, w/ EM060K-GL Module - HAT Raspberry Pi LTE Cat 6 Communication HAT, LTE-A Global Multi-band, GNSS Positioning, w/ EM060K-GL Module - HAT Specifications Integrated multi-constellation high-precision GNSS positioning: GPS, GLONASS, BDS, Galileo Integrates rich network protocols with multiple drivers and software support Compatible with different systems including Windows, Linux, and Android USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano for high-speed LTE-A network Standard M.2 B KEY slot, compatible with QUECTEL and SIMCOM series 4G/5G M.2 modules Onboard PWR and RST control pins, enabled via DIP switch, for connecting external IO ports to control module power on/off and reset Onboard USB-C connector, enabled via switch, for connecting a standalone power supply for the module Onboard power supply switch, reset button, and LED indicator for easy module control and status monitoring Reserved 4x SMA to IPEX antenna connectors for easy installation and adjustment of SMA antenna positions High-efficiency power supply circuit with up to 3A output current LTE CAT 6 Operating temperature: -30 °C to +70 °C Extension temperature: -40 °C to +85 °C Frequency Band: LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 (B29/B32 support RX only, secondary component carrier only) LTE-TDD B34, B38, B39, B40, B41, B42, B43, B46 (LAA), B48 (CBRS) (B46 supports RX only, secondary component carrier only) 2xCA Intra-band, Inter-band WCDMA B1, B2, B3, B4, B5, B6, B8, B19 GNSS: GPS/GLONASS/BDS/Galileo Data Rate: LTE-FDD 300Mbps (DL) / 50Mbps (UL), DC-HSPA+ 42Mbps (DL) / 5.76Mbps (UL), WCDMA 384kbps (DL) / 384kbps (UL) Designed for IoT/M2M applications Supports multiple network standards such as LTE-A and UMTS/HSPA(+) Nearly covers all mainstream carriers worldwide Multi-system support, easy to use Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT
