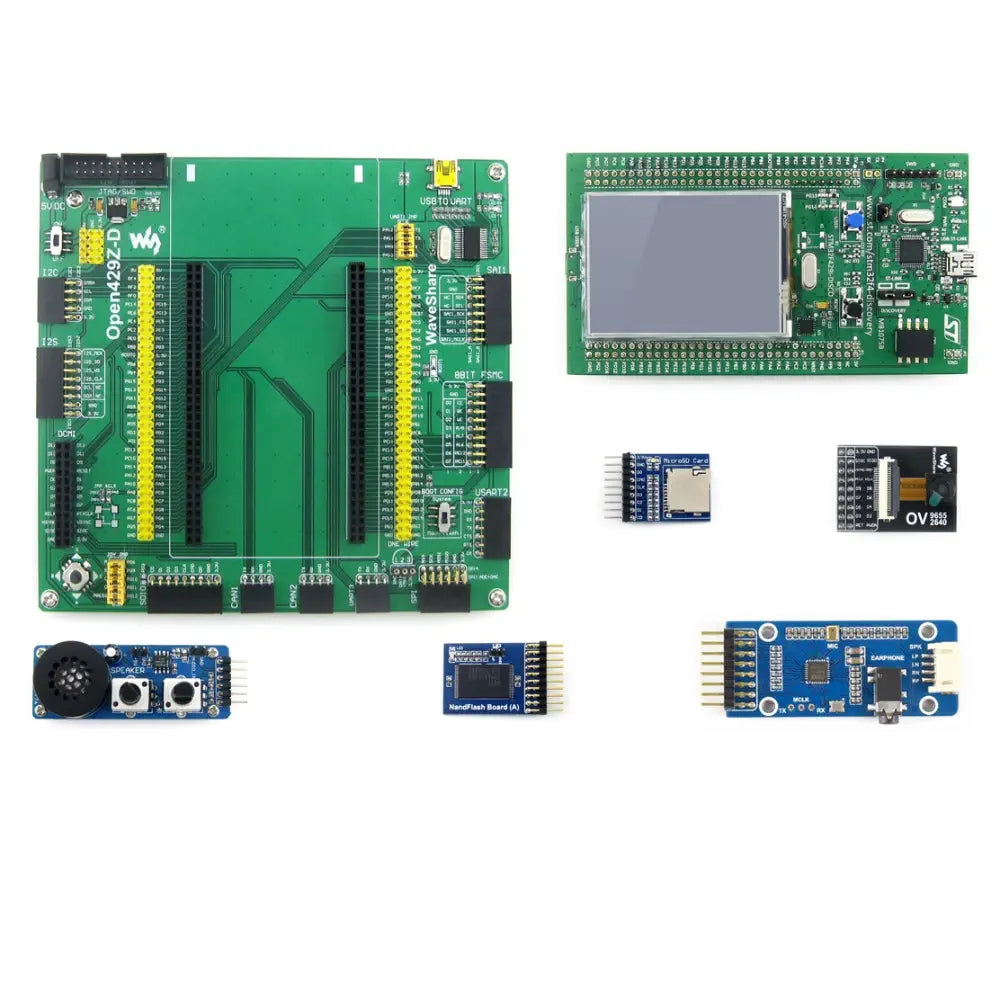

Waveshare Open429Z-D Package A, STM32F4 Development Board
Description Waveshare Open429Z-D Package A, STM32F4 Development Board Feature-rich STM32F429ZIT6 microcontroller Include 2.4" QVGA TFT LCD and 64-Mbit SDRAM Support diverse interfaces for easy expansion Provide free comprehensive software package Include multiple optional accessory boards The Waveshare Open429Z-D Package A, STM32F4 Development Board is a sophisticated development platform designed for the ST official tool 32F429IDISCOVERY. It features the STM32F429ZIT6 microcontroller, which is equipped with 2 Mbytes of Flash memory and 256 Kbytes of RAM in an LQFP144 package. This board is ideal for developers looking to start application development with STM32 series microcontrollers, offering a modular and open design that supports further expansion through various optional accessory boards. The development board integrates a wide array of standard interfaces, facilitating easy peripheral expansions. It includes connectors for USB to UART conversion, I2C, I2S, DCMI, SDIO, CAN, UART, SPI, and SAI interfaces, among others. These interfaces allow seamless connection to a variety of peripherals such as audio modules, cameras, Micro SD modules, and more. The board also features an 8-bit FMC interface for connecting peripherals like NandFlash, and a ONE-WIRE interface for devices such as temperature sensors. Additional features include a 2.4" QVGA TFT LCD, 64-Mbit SDRAM, and a 3-axis digital output gyroscope. The board is equipped with multiple LEDs for various indications, two push-buttons for user and reset functions, and a USB OTG with a micro-AB connector. It supports power supply through the USB bus or from an external 3 V or 5 V source, and includes a comprehensive software package with a variety of examples for ease of development. The package includes the Open429Z-D motherboard, a 32F429IDISCOVERY board, and several accessory boards such as an audio board, an analog test board, a Micro SD storage board, a camera board, and a NandFlash board. These components provide a robust platform for developing and testing a wide range of applications. View more What's Included 1x Waveshare Open429Z-D Package A, STM32F4 Development Board 1x Open429Z-D motherboard 1x 4-pin 2-pin wires pack 1x USB power cable 1x 32F429IDISCOVERY 1x WM8960 audio board 1x Analog test board 1x Micro SD storage board 1x OV2640 camera board 1x NandFlash board (A) 1x USB type A plug to mini-B plug cable Links Website Open429Z-D Package A, STM32F4 Development Board - Development Board Wiki Specifications 32F429IDISCOVERY socket for connecting the 32F429IDISCOVERY MCU pins connector: all MCU I/O ports accessible on expansion connectors USB connector: USB to UART via onboard converter PL2303 I2C1/I2C2 interface: connects to I2C peripherals like I/O expander (PCF8574), FRAM (FM24CLxx) I2S2/I2S3/I2C1 interface: connects to I2S peripherals like audio modules DCMI interface: for connecting a camera SDIO interface: for connecting a Micro SD module with faster access speed than SPI CAN1 and CAN2 interfaces: communicate with accessory boards featuring the CAN device UART3 and UART2 interfaces: connect to RS232, RS485, USB TO 232 SPI1/SPI4 + AD/DA interfaces: connect to SPI peripherals like DataFlash (AT45DBxx), SD card, MP3 module 8-bit FMC interface: connects to peripherals like NandFlash SAI1 interface: for connecting audio modules ONE-WIRE interface: connects to ONE-WIRE devices (TO-92 package) like temperature sensor (DS18B20), electronic registration number (DS2401) 5V DC jack 5V/3.3V power input/output: used as power output, common-grounding with other user boards JTAG/SWD interface: for debugging/programming Joystick jumper: short the jumper to connect the joystick to default I/Os used in example code Boot mode switch: for configuring BOOT0 pin AMS1117-3.3V voltage regulator PL2303: USB to UART converter 12MHz crystal 5V DC power switch Power indicator UART1 indicator Joystick: five positions STM32F429ZIT6 microcontroller with 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package On-board ST-LINK/V2-B USB functions: debug port, virtual COM port, mass storage Board power supply: through USB bus or from an external 3 V or 5 V supply voltage 2.4" QVGA TFT LCD 64-Mbit SDRAM L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope Six LEDs: LD1 (red/green) for USB communication, LD2 (red) for 3 V power-on, two user LEDs: LD3 (green), LD4 (red), two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current) Two push-buttons (user and reset) USB OTG with micro-AB connector Extension header for LQFP144 I/Os for quick connection to the prototyping board and easy probing Comprehensive free software including various examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage
