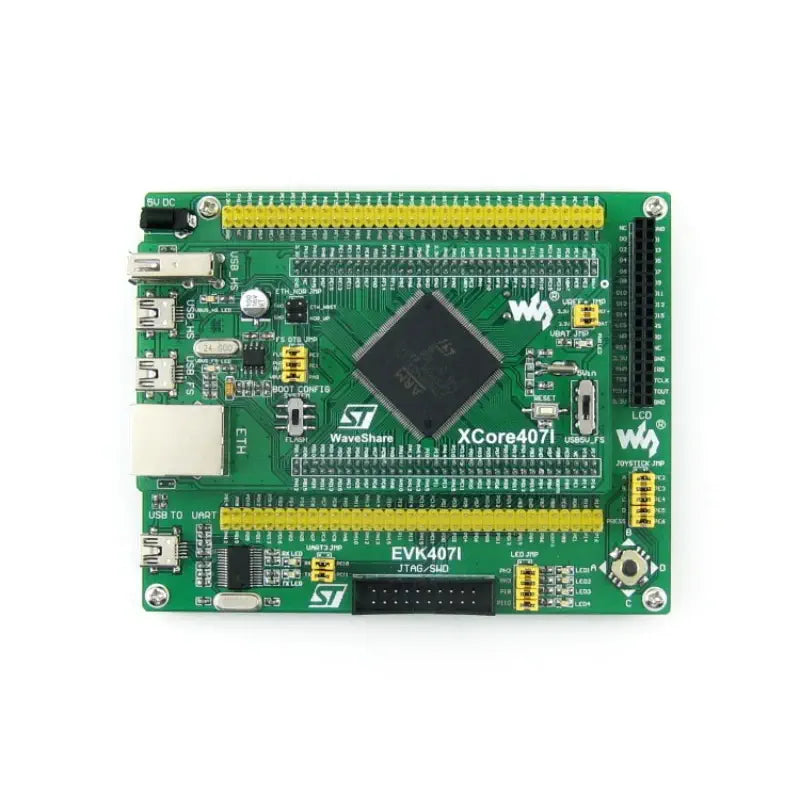

Waveshare EVK407I STM32F4 Development Board
Description Waveshare EVK407I STM32F4 Development Board Features high-performance STM32F407IGT6 MCU Integrates wide range of communication interfaces Supports extensive debugging and programming Includes comprehensive development resources Provides diverse connectors for expansion The Waveshare EVK407I STM32F4 Development Board is a comprehensive development platform designed for advanced microcontroller applications. It integrates a mother board and an MCU core board, featuring the high-performance STM32F407IGT6 microcontroller. This microcontroller is based on the Cortex-M4 32-bit RISC architecture, offering a full set of single-cycle DSP instructions and operating at a frequency of 168MHz. The development board supports a wide range of communication interfaces, including SPI, USART, UART, I2S, I2C, FSMC, SDIO, CAN, and USB 2.0 with high-speed/full-speed device/host/OTG capabilities. It also includes an Ethernet MAC and a parallel camera interface, making it suitable for diverse applications. The board is equipped with multiple crystals to support various clock frequencies, enhancing the performance and functionality of the microcontroller. Additional features include onboard power management devices, a NAND Flash memory, and various connectors for USB and Ethernet. The board provides extensive debugging and programming support through JTAG/SWD interfaces. It also includes user-friendly components such as LEDs for status indication and a joystick for input. The development resources provided include software tools, example codes, and comprehensive documentation to facilitate the development process. This board is ideal for developers seeking a robust platform for prototyping and testing STM32-based applications. View more What's Included 1x Waveshare EVK407I STM32F4 Development Board 1x 3.2-inch 320x240 touch LCD 1x USB type A plug to mini-B plug cable 1x USB type A receptacle to mini-B plug cable 2x 4-pin wire 1x USB power cable 1x Software CD Links Website EVK407I, STM32F4 Development Board - EVK407I Wiki Specifications STM32F407IGT6: High-performance STM32 microcontroller unit (MCU) Core: Cortex-M4 32-bit RISC Feature: Full set of single-cycle DSP instructions Operating Frequency: 168 MHz, 210 DMIPS/1.25 DMIPS/MHz Operating Voltage: 1.8V-3.6V Package: LQFP176 Memories: 1024 kB Flash, 192+4 kB SRAM MCU Communication Interfaces: 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C, 1 x FSMC, 1 x SDIO, 2 x CAN USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI, and on-chip full-speed PHY 10/100 Ethernet MAC 8 to 14-bit parallel camera interface AD & DA converters: 3 x AD (12-bit, 1 μs, shares 24 channels); 2 x DA (12-bit) Debugging/Programming: Supports JTAG/SWD (serial wire debug) interfaces, supports IAP MIC2075-2, onboard USB FS power management device AMS1117-3.3V voltage regulator K9F1G08U0E, 1G Bit NandFlash DP83848, Ethernet PHY MIC2075-1, onboard USB HS power management device USB3300, USB HS PHY Power supply switch, powered from 5V input or USB connection Boot mode switch, for configuring BOOT0 pin Power indicator USB FS LED USB HS LED Reset button 8M crystal, MCU clock, enables the MCU to run at higher speed by frequency multiplication 24M crystal, USB3300 clock 50M crystal, DP83848 clock 32.768K crystal, for internal RTC with calibration Ethernet connector USB FS mini connector USB HS mini connector USB HS type A connector MCU pins expander, VCC, GND, and all the idle I/O ports are accessible on expansion connectors for further expansion USB OTG/HOST jumper VREF/VBAT jumper Ethernet I/O selection solder joint USB HS I/O selection solder joint PDR selection solder joint: 1.8-3.6V, -40 to 105°C or 1.7-3.6V, 0 to 70°C
