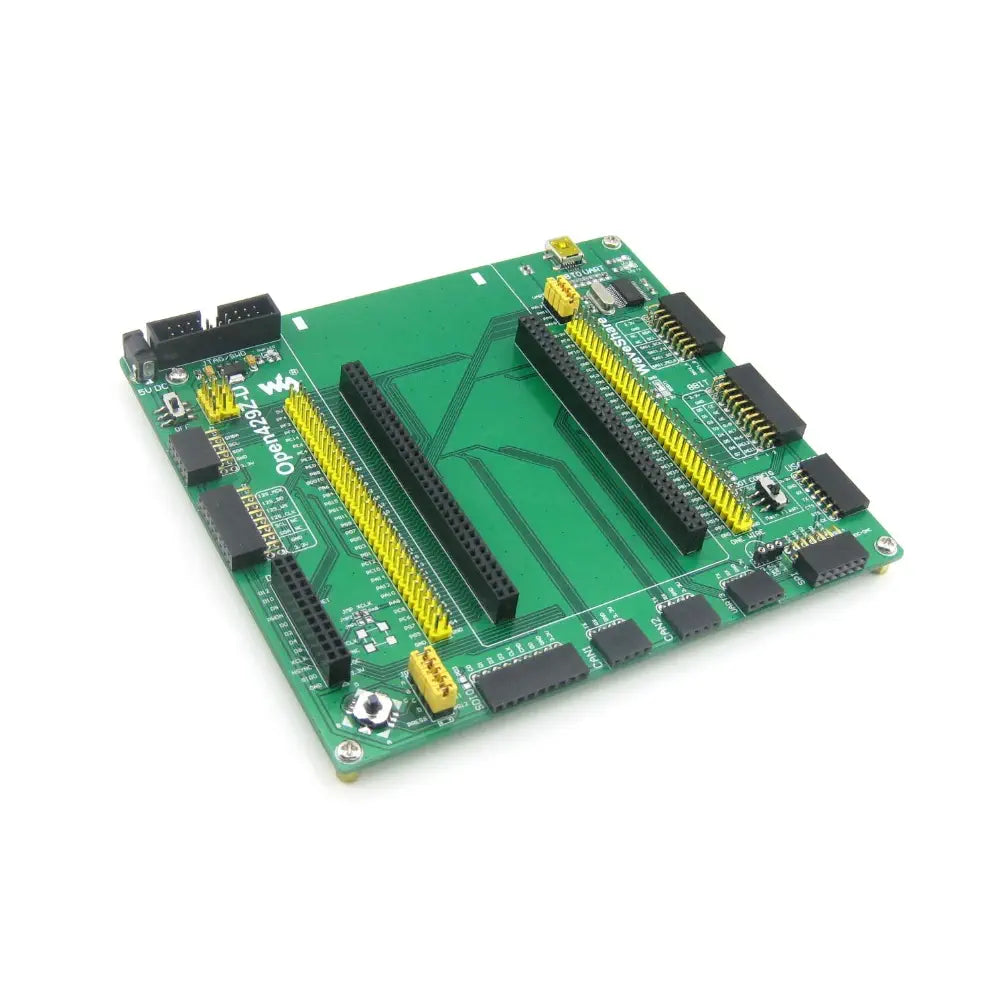

Waveshare Open429Z-D STM32F4 Development Board
Description Waveshare Open429Z-D STM32F4 Development Board Facilitates integration with multiple interfaces Supports debugging via JTAG/SWD Equipped with 64-Mbit SDRAM Features 2.4" QVGA TFT LCD screen Offers extensive software examples The Waveshare Open429Z-D STM32F4 Development Board is a sophisticated platform designed for the ST official tool 32F429IDISCOVERY, featuring the STM32F429ZIT6 microcontroller. This development board is engineered to facilitate the expansion of peripheral applications, making it an ideal choice for developers working with STM32 series microcontrollers. Its modular and open design supports the integration of various optional accessory boards, enhancing its versatility for specific applications. The board includes a 32F429IDISCOVERY socket for seamless connectivity, and all MCU I/O ports are accessible for further expansion. It features multiple interfaces such as USB to UART, I2C, I2S, DCMI, SDIO, CAN, UART, SPI, and SAI, allowing for easy connection to a wide range of peripherals including audio modules, cameras, and data storage devices. The board also supports debugging and programming through JTAG/SWD interfaces. Additionally, the 32F429IDISCOVERY component of the board is equipped with a 2.4" QVGA TFT LCD, 64-Mbit SDRAM, and a 3-axis digital output gyroscope. It offers USB functions for debugging, virtual COM port, and mass storage, and can be powered via USB or an external supply. The board includes comprehensive software support with a variety of examples, enhancing its utility for developers. Note: Ensure proper handling of the board to avoid damage from electrostatic discharge. View more What's Included 1x Waveshare Open429Z-D STM32F4 Development Board 1x Open429Z-D motherboard 1x 4-pin 2-pin wires pack 1x USB power cable Links Website Open429Z-D Standard, STM32F4 Development Board - Product Wiki Specifications STM32F429ZIT6 microcontroller with 2 Mbytes of Flash memory and 256 Kbytes of RAM in an LQFP144 package On-board ST-LINK/V2-B mbed™-enabled USB functions: debug port, virtual COM port, mass storage Board power supply via USB bus or external 3 V or 5 V supply voltage 2.4" QVGA TFT LCD 64-Mbit SDRAM L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope Six LEDs for various functions Two push-buttons (user and reset) USB OTG with micro-AB connector Extension header for LQFP144 I/Os Comprehensive free software including various examples
