Waveshare Open429Z-D Package B, STM32F4 Development Board

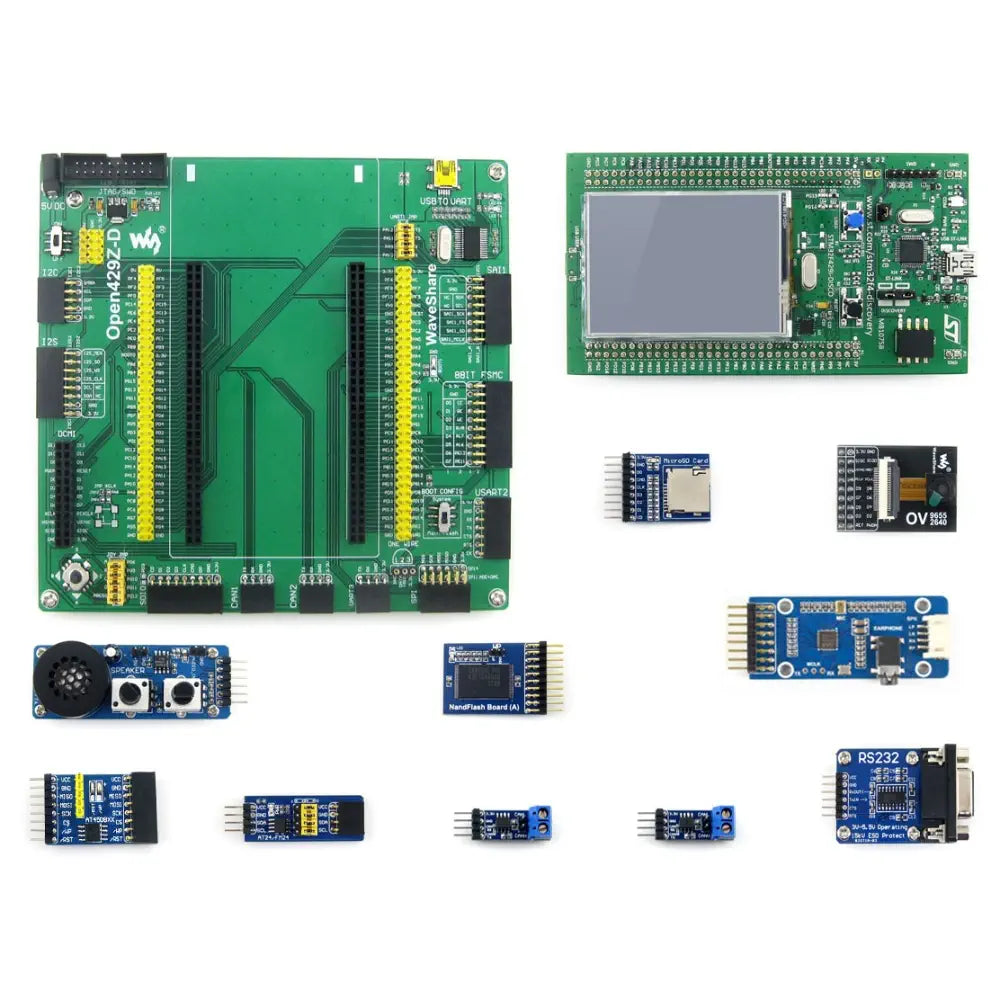

Description Waveshare Open429Z-D Package B, STM32F4 Development Board Supports STM32F429ZIT6 MCU with 2MB Flash and 256KB RAM Facilitates expansion with USB, I2C, SPI, and more interfaces Features 2.4" QVGA TFT LCD and 64-Mbit SDRAM Includes 3-axis gyroscope and six LEDs for indications Enables mbed integration with STM32CubeF4 software The Waveshare Open429Z-D Package B, STM32F4 Development Board is a sophisticated development platform designed for the ST official tool 32F429IDISCOVERY. It features the STM32F429ZIT6 microcontroller, which is equipped with 2 Mbytes of Flash memory and 256 Kbytes of RAM, making it suitable for a wide range of applications. The board's modular and open design facilitates easy expansion with various optional accessory boards, making it an ideal choice for developers working with STM32 series microcontrollers. This development board integrates numerous standard interfaces, allowing for seamless peripheral expansions. It includes connectors for USB to UART conversion, I2C, I2S, DCMI, SDIO, CAN, UART, SPI, and SAI interfaces, among others. These interfaces enable the connection of various peripherals such as audio modules, cameras, Micro SD modules, and more, providing developers with extensive flexibility in their projects. The board also features a 2.4" QVGA TFT LCD, a 64-Mbit SDRAM, and a 3-axis digital output gyroscope, enhancing its capabilities for multimedia and motion-sensing applications. Additionally, it includes six LEDs for various indications, two push-buttons for user interaction and reset functions, and a USB OTG with a micro-AB connector for additional connectivity options. The development board is powered through the USB bus or an external 3 V or 5 V supply voltage, ensuring versatile power management. It also supports debugging and programming through the JTAG/SWD interface, and it is mbed™-enabled, providing access to a comprehensive suite of free software and examples as part of the STM32CubeF4 package. Note: Ensure proper handling of the board to avoid static discharge, which can damage sensitive components. View more What's Included 1x Waveshare Open429Z-D Package B, STM32F4 Development Board 1x Open429Z-D motherboard 1x 4-pin 2-pin wires pack 1x USB power cable 1x 32F429IDISCOVERY 1x WM8960 audio board 1x Analog test board 1x Micro SD storage board 1x OV2640 camera board 1x NandFlash board (A) 1x SN65HVD230 CAN board (2 pieces) 1x FM24CLxx FRAM board 1x AT45DBxx DataFlash board 1x RS232 board 1x USB type A plug to mini-B plug cable 1x Serial male to female cable Links Website Open429Z-D Package B, STM32F4 Development Board - Development Board Wiki Specifications 32F429IDISCOVERY socket for connecting the 32F429IDISCOVERY MCU pins connector: all MCU I/O ports accessible on expansion connectors USB connector: USB to UART via onboard converter PL2303 I2C1/I2C2 interface: connects to I2C peripherals like I/O expander (PCF8574), FRAM (FM24CLxx) I2S2/I2S3/I2C1 interface: connects to I2S peripherals such as audio modules DCMI interface: for connecting a camera SDIO interface: for connecting Micro SD module with faster access speed than SPI CAN1 and CAN2 interfaces: communicate with accessory boards featuring CAN devices UART3 and UART2 interfaces: connect to RS232, RS485, USB TO 232 SPI1/SPI4 + AD/DA interfaces: connect to SPI peripherals like DataFlash (AT45DBxx), SD card, MP3 module 8-bit FMC interface: connects to peripherals such as NandFlash SAI1 interface: for connecting audio modules ONE-WIRE interface: connects to ONE-WIRE devices like temperature sensor (DS18B20), electronic registration number (DS2401) 5V DC jack 5V/3.3V power input/output: used as power output, common-grounding with other user boards JTAG/SWD interface: for debugging/programming Joystick jumper: connects joystick to default I/Os used in example code Boot mode switch: for configuring BOOT0 pin AMS1117-3.3V voltage regulator PL2303: USB to UART converter 12MHz crystal 5V DC power switch Power indicator UART1 indicator Joystick: five positions STM32F429ZIT6 microcontroller with 2 Mbytes of Flash memory, 256 Kbytes of RAM in LQFP144 package On-board ST-LINK/V2-B mbed™-enabled (mbed.org) USB functions: debug port, virtual COM port, mass storage Board power supply: through USB bus or from external 3 V or 5 V supply voltage 2.4" QVGA TFT LCD 64-Mbit SDRAM L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope Six LEDs: LD1 (red/green) for USB communication, LD2 (red) for 3 V power-on, two user LEDs: LD3 (green), LD4 (red), two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current) Two push-buttons (user and reset) USB OTG with micro-AB connector Extension header for LQFP144 I/Os for quick connection to prototyping board and easy probing Comprehensive free software including various examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage
