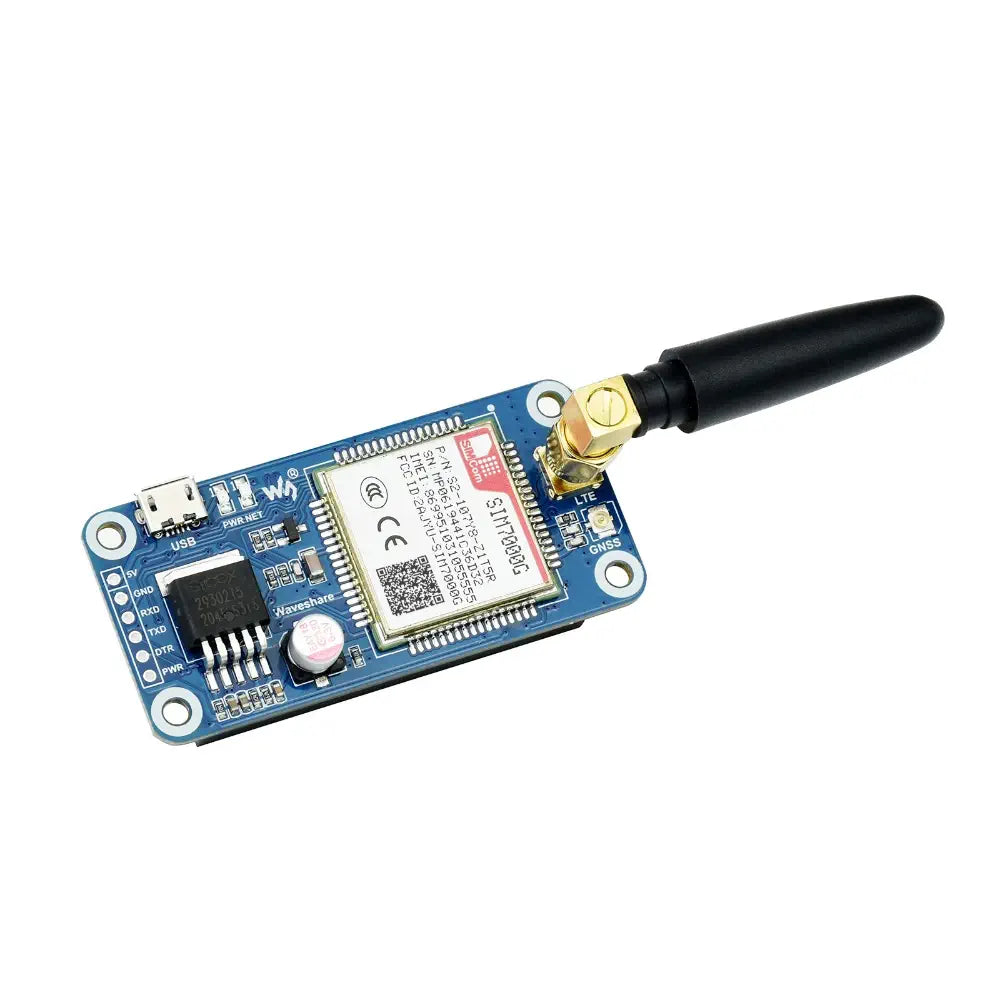

Waveshare SIM7000G NB-IoT / Cat-M / EDGE / GPRS HAT for Raspberry Pi, GNSS, Global Band Support

Description Waveshare SIM7000G NB-IoT / Cat-M / EDGE / GPRS HAT for Raspberry Pi, GNSS, Global Band Support Supports various global bands NB-IoT, Cat-M, GPRS Offers GNSS positioning with GPS, BeiDou, GLONASS Includes 40PIN GPIO header for Raspberry Pi Features adjustable voltage, 3.3V to 5V Equipped with dual LED indicators for status The Waveshare SIM7000G NB-IoT / Cat-M / EDGE / GPRS HAT for Raspberry Pi, GNSS, Global Band Support is a versatile telecommunication module designed for integration with Raspberry Pi. It supports a wide range of global bands including NB-IoT, Cat-M, and GPRS, and features GNSS positioning capabilities. This module is particularly suitable for Internet of Things (IoT) applications such as intelligent instruments, asset tracking, remote monitoring, and e-health, owing to its compact size, low latency, and extensive coverage. The module is equipped with a standard Raspberry Pi 40PIN GPIO extension header, ensuring compatibility with various Raspberry Pi series boards. It supports multiple communication protocols including TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, and Mail, enhancing its utility in diverse applications. The onboard USB interface facilitates testing of AT Commands and acquisition of GPS positioning data, while breakout UART control pins allow connection with host boards like Arduino and STM32. Additionally, the module includes a SIM card slot compatible with both standard SIM cards and NB-IoT specific cards, and features dual LED indicators for easy monitoring of operational status. The device operates at a default voltage of 3.3V, which can be adjusted to 5V if necessary. It is controlled via AT commands and supports the SIM application toolkit, providing a robust platform for developers. Note: Ensure proper handling and installation to avoid damage due to electrostatic discharge or incorrect voltage settings. View more What's Included 1x Waveshare SIM7000G NB-IoT / Cat-M / EDGE / GPRS HAT for Raspberry Pi, GNSS, Global Band Support 1x GSM antenna 1x GPS external antenna (B) 1x USB-A to Micro-B cable 1x Standoffs pack Dimensions 30.2 x 65 mm Links Website SIM7000G NB-IoT / Cat-M / EDGE / GPRS HAT for Raspberry Pi, GNSS, Global Band Support - SIM7000G Wiki Specifications Standard Raspberry Pi 40-pin GPIO extension header, compatible with Raspberry Pi series boards Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, and Mail Supports GNSS positioning: GPS, BeiDou, GLONASS Onboard USB interface for testing AT Commands and obtaining GPS positioning data Breakout UART control pins for connection with host boards like Arduino/STM32 Onboard voltage translator, 3.3V by default, switchable to 5V via 0Ω resistor SIM card slot compatible with both normal SIM cards and NB-IoT specific cards Two LED indicators for monitoring working status Baud rate: 300bps to 3686400bps (115200bps by default) Controlled via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT Includes development resources and manual with examples for Raspberry Pi/Arduino/STM32 Frequency bands for NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28 Frequency bands for Cat-M: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39 Frequency bands for GPRS/EDGE: 850, 900, 1800, 1900MHz Data rate for NB-IoT: 34(DL)/66(UL) Data rate for Cat-M: 300(DL)/375(UL) Data rate for EDGE: 236.8(DL)/236.8(UL) Data rate for GPRS: 85.6(DL)/85.6(UL) GNSS satellite systems: GPS, BeiDou, GLONASS Receiver type: 16-channel Sensitivity tracking: -162 dBm (GPS) / -157 dBm (GLONASS) Cold starts sensitivity: -148 dBm Time-to-first-fix for cold starts: <35 seconds Time-to-first-fix for hot starts: <1 second Position accuracy: <2.5m CEP Power supply: 5V Operating voltage: 5V / 3.3V (3.3V by default) Sleep mode current: 1.2mA (@DRX=2.56s) Power save mode current: 9uA Operating temperature range: -40°C to 85°C Storage temperature range: -45°C to 90°C
